Assortment / Thermal insulation materials


Styrofoam

Styrofoam EPS 50 (12 kg/m3)

Expanded polystyrene panel (EPS)

Properties:
  • great thermal insulation
  • light-weight
  • good mechanical and structural properties
  • good installation properties
  • environment and health friendly materials
  • not resistant to organic solvents
Usage areas:
  • thermal insulation in non-structural areas
Size: 1000x500 mm
Custom dimensions available!

Coefficient of thermal conductivity: l=0,041 W/mK
EPS 50 with a specific weight of 12 kg/m3 Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
Intended for thermal insulation for non-structural objects (to fill holes, etc.) 1 100x50 25 0,20
2 12,5 0,45
3 8 0,70
4 6 0,95
5 5 1,20
6 4 1,45
7 3,5 1,70
8 3 1,95
9 2,5 2,20
10 2,5 2,40
EPS HRN EN 13163 T1-L1-W1-S1-P3-DS(N)5-BS75-CS(10)50


Styrofoam EPS 70 (15 kg/m3)

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • good mechanical and structural properties
  • good installation properties
  • environment and health friendly materials
  • not resistant to organic solvents
Usage areas:
  • thermal insulation of internal and external walls, pitched roofs, ceilings, floors with a smaller load...
Size: 1000x500 mm
Custom dimensions available!

Coefficient of thermal conductivity: l=0,038 W/mK
EPS 70 with a specific weight of 15 kg/m3 Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
Intended for thermal insulation of pitched roofs, floors with small loads, facade cladding of the facade bricks, etc. 1 100x50 25 0,25
2 12,5 0,50
3 8 0,75
4 6 1,05
5 5 1,30
6 4 1,55
7 3,5 1,80
8 3 2,10
9 2,5 2,35
10 2,5 2,60
EPS HRN EN 13163 T1-L1-W1-S1-P3-DS(N)5-BS115-CS(10)70


Styrofoam EPS 100 (20 kg/m3)

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • good mechanical and structural properties
  • good installation properties
  • environment and health friendly materials
  • not resistant to organic solvents
Usage areas:
  • thermal insulation of flat roofs, floors with larger loads...
Size: 1000x500 mm
Custom dimensions available!

Coefficient of thermal conductivity: l=0,036 W/mK
EPS 100 with a specific weight of 20 kg/m3 Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
Intended for thermal insulation of floors, flat roofs, and in situations where bigger bearing capacity is required 1 100x50 25 0,25
2 12,5 0,55
3 8 0,80
4 6 1,10
5 5 1,35
6 4 1,65
7 3,5 1,90
8 3 2,20
9 2,5 2,50
10 2,5 2,75
EPS HRN EN 13163 T1-L1-W1-S1-P3-DS(N)5-BS150-CS(10)100


Styrofoam EPS 150 (25 kg/m3)

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • good mechanical and structural properties
  • good installation properties
  • environment and health friendly materials
  • not resistant to organic solvents
Usage areas:
  • as thermal insulation of flat roofs and floors with bigger load, to the 150 kPa
  • manufacturers of synthetic waterproofing tape recommend it for flat roofs under such tapes
  • as thermal insulation in cold storages, terraces and other
Size: 1000x500 mm
Custom dimensions available!

Coefficient of thermal conductivity: l=0,035 W/mK
EPS 150 with a specific weight of 25 kg/m3 Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
Intended for thermal insulation of floors, flat roofs, and in situations where bigger bearing capacity is required 1 100x50 25 0,25
2 12,5 0,55
3 8 0,85
4 6 1,10
5 5 1,40
6 4 1,70
7 3,5 2,00
8 3 2,25
9 2,5 2,55
10 2,5 2,85
EPS HRN EN 13163 T1-L1-W1-S1-P3-DS(N)5-BS200-CS(10)150


Stiropor EPS 200 (30 kg/m3)

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • good mechanical and structural properties
  • good installation properties
  • environment and health friendly materials
  • not resistant to organic solvents
Usage areas:
  • thermal insulation of building structures with the highest load >200 kPa, such as flat roofs notches - parking lots, industrial floors, cold storages, gyms, etc.
Size: 1000x500 mm
Custom dimensions available!

Coefficient of thermal conductivity: l=0,035 W/mK
EPS 200 with a specific weight of 30 kg/m3 Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
Intended for thermal insulation of floors, and in the places where high capacity is required 1 100x50 25 0,25
2 12,5 0,55
3 8 0,85
4 6 1,10
5 5 1,40
6 4 1,70
7 3,5 2,00
8 3 2,25
9 2,5 2,55
10 2,5 2,85
EPS HRN EN 13163 T1-L1-W1-S1-P3-DS(N)5-BS250-CS(10)200


Styrofoam EPS T (elastificirani)

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • good mechanical and structural properties
  • good installation properties
  • environment and health friendly materials
  • not resistant to organic solvents
Usage areas:
  • Floating floors in buildings of all purposes for lowering the lewels of impact sound - the rumble in the floors between floors and the floors on the ground, and against the spread of sound sideways and up - down
Size: 0,5 cm x 100 m i 1 cm x 50 m (rola)

Coefficient of thermal conductivity: l=0,042 W/mK
Elasticated styrofoam - EPS T Thickness (cm) Nominal dimension (m) Thermal resistance Rt m2 K/V
Intended for floating floors to lower levels of impact sound 0,5 100 0,10
1 50 0,20
EPS HRN EN 13163 T3-L1-W1-S3-CP4-SD20/SD15

Facade styrofoam


Facade styrofoam EPS F - flap

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • small resistance factor to water vapor diffusion
  • specially made without recycled expanded polystiren
  • mellow
  • sufficiently dimensionally stable
  • difficult to ignite
  • ship-lap edge - prevents the entry of construction adhesive in the panel joint
  • environment and health friendly materials
Usage areas:
  • for use in integrated systems for external thermal insulation ETICS
Size: 1000x500 mm

Coefficient of thermal conductivity: l=0,039 W/mK
Facade styrofoam - EPS F flap Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
for use in integrated systems for external thermal insulation ETICS 4 100x50 6 1,05
5 5 1,30
6 4 1,55
7 3,5 1,80
8 3 2,10
9 2,5 2,35
10 2,5 2,6
11 2 2,85
12 2 3,15
13 2 3,40
14 1,5 3,65
15 1,5 3,9
16 1,5 4,20
17 1,5 4,45
18 1 4,7
19 1 5
20 1 5,25
EPS HRN EN 13163 T2-L2-W2-S2-P4-DS(70,-)1-DS(N)2-BS115-TR150

Facade styrofoam EPS F

Expanded polystyrene panel (EPS)
Properties:
  • great thermal insulation
  • light-weight
  • small resistance factor to water vapor diffusion
  • specially made without recycled expanded polystiren
  • mellow
  • sufficiently dimensionally stable
  • difficult to ignite
  • environment and health friendly materials
Usage areas:
  • for use in integrated systems for external thermal insulation ETICS
Size: 1000x500 mm

Coefficient of thermal conductivity: l=0,039 W/mK
Facade styrofoam - EPS F Thickness (cm) Nominal dimension (cm) One package (m2) Thermal resistance Rt m2 K/V
for use in integrated systems for external thermal insulation ETICS 4 100x50 6 1,05
5 5 1,30
6 4 1,55
7 3,5 1,80
8 3 2,10
9 2,5 2,35
10 2,5 2,6
11 2 2,85
12 2 3,15
13 2 3,40
14 1,5 3,65
15 1,5 3,9
16 1,5 4,20
17 1,5 4,45
18 1 4,7
19 1 5
20 1 5,25
EPS HRN EN 13163 T2-L2-W2-S2-P4-DS(70,-)1-DS(N)2-BS100-TR150

Expanded polystyrene - XPS


Fibran XPS 300-L

Areas of useage:
  • Inverted warm flat roofs
  • DUO roofs (low energy and passive houses)
  • PLUS roofs (renovations, energy class upgrade)
  • Warm flat roofs
  • Green roof
  • Roof terraces
  • Mid-story floors
  • Basement floor
  • Floors with underfloor heating
  • Extra loaded floors
  • Cold storage
  • Hanging façades
  • Perimeter basement walls, even when ground water is present
  • Swimming pools
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
30 10,50 300 1250x600
flapped edge
smooth surface
0,033
40 7,50 0,034
50 6 0,034
60 5,25 0,035
80 3,75 0,035
100 3,0 0,035
120 2,25 0,036
140 2,25 0,038
160 1,50 0,040
180 1,50 0,040
200 1,50 0,040
XPS - EN 13164 - T1 - CS(10\Y)300 - CC(2/1,5/50)115 - DS(TH) - DLT(2)5 - WL(T)0,7 - WD(V)3 - FT2

Fibran XPS 400-L

Areas of useage:
  • Inverted warm flat roofs
  • DUO roofs (low energy and passive houses)
  • PLUS roofs (renovations, energy class upgrade)
  • Warm flat roofs
  • Green roof
  • Roof terraces
  • Extra loaded floors
  • Cold storage
  • Perimeter basement walls, even when ground water is present
  • Base board
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
80 7,50 400 2500x600
flapped edge
smooth surface
0,035
100 6 0,035
120 4,50 0,036
140 4,50 0,038
160 3 0,040
180 3 0,040
200 3 0,040
Custom orders possible! - custom dimensions available 1250x600 mm
XPS - EN 13164 - T1 - CS(10\Y)400 - DS(TH) - DLT(2)5 - WL(T)0,7 - WD(V)3 - FT2

Fibran XPS 500-L

Areas of useage:
  • Inverted warm flat roofs
  • DUO roofs (low energy and passive houses)
  • PLUS roofs (renovations, energy class upgrade)
  • Warm flat roofs
  • Green roof
  • Roof terraces
  • Parking lots
  • Extra loaded floors
  • Cold storage
  • Perimeter basement walls, even when ground water is present
  • Base board
  • Bridges, roads and railways
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
50 6 500 1250x600
flapped edge
smooth surface
0,034
60 5,25 0,035
80 3,75 0,035
100 3 0,035
120 2,25 0,036
140 2,25 0,038
160 1,50 0,040
180 1,5 0,040
XPS - EN 13164 - T1 - CS(10\Y)500 - CC(2/1,5/50)165 - DS(TH) - DLT(2)5 - WL(T)0,7 - WD(V)3 - FT2

Fibran XPS 700-L

Areas of useage:
  • Inverted warm flat roofs
  • DUO roofs (low energy and passive houses)
  • PLUS roofs (renovations, energy class upgrade)
  • Warm flat roofs
  • Green roof
  • Roof terraces
  • Parking lots
  • Extra loaded floors
  • Cold storage
  • Perimeter basement walls, even when ground water is present
  • Base board
  • Bridges, roads and railways
  • Airport hangers and runways
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
60 5,25 700 1250x600
flapped edge
smooth surface
0,035
80 3,75 0,035
100 3 0,035
120 2,25 0,036
XPS - EN 13164 - T1 - CS(10\Y)700 - DS(TH) - DLT(2)5 - WL(T)0,7 - WD(V)3 - FT2

Fibran XPS 300-I

Areas of useage:
  • Pitched roofs, eaves, small pitched roofs
  • Mid-story floors
  • Basement floor
  • Floors with underfloor heating
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
20 15 200 1250x600
straight edge
smooth surface
0,033
30 10,5 250 0,033
40 7,50 300 0,034
50 6 0,034
60 5,25 0,035
80 3,75 0,035
100 3 0,035
Custom orders possible!
XPS - EN 13164 - T1 - CS(10\Y)* - DS(TH) - DLT(2)5 - WL(T)0,7 - WD(V)3 - FT2

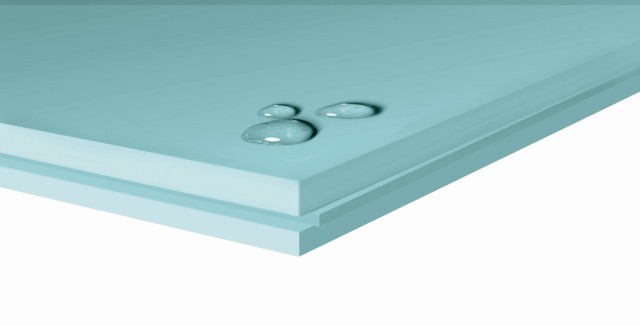

Fibran XPS MAESTRO

Areas of useage:
  • Pitched roofs, eaves, small pitched roofs
  • Ceilings of warehouses, sports structures and agricultural
  • Hanging facades
  • Overcladded facades, cavity walls
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
50 13,44 250 2800x600
ongue and grooved edge, "D" profile
smooth surface
0,034
60 11,76 300 0,035
80 8,40 0,035
100 6,72 0,035
120 5,04 0,036
140 5,04 0,038
160 3,36 0,040
XPS - EN 13164 - T1 - CS(10\Y)* - DS(TH) - DLT(2)5 - WL(T)0,7 - WD(V)3 - FT2

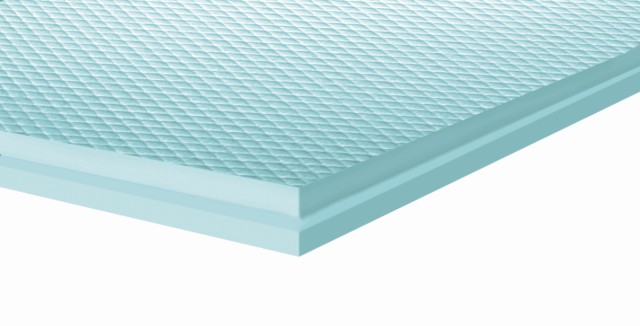

Fibran XPS ETICS GF

Areas of useage:
  • Pitched roofs, eaves, small pitched roofs
  • Facade profile
  • Hanging facades
  • Plastered facade ETICS
  • Blind thermal insulation formwork
  • Internal or sandwich wall insulation
  • Facades with stone facings
  • Sandwich panels
  • Thermal bridges (balconies, window and door jambs, concrete columns and tie-beams
  • Internal walls located next to colder spaces
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
20 15 200 1250x600
straight edge
"waffled" surface
0,033
30 10,50 250 1250x600
ship-lap edge
"waffled" surface
0,033
40 7,50 250 0,034
50 6 300 0,034
60 5,25 0,035
80 3,75 0,035
100 3 0,035
120 2,25 0,036
140 2,25 0,038
160 1,50 0,040
180 1,50 0,040
XPS - EN 13164 - T3 - CS(10\Y)* - TR400 - DS(TH) - DLT(2)5 - WL(T)1,5

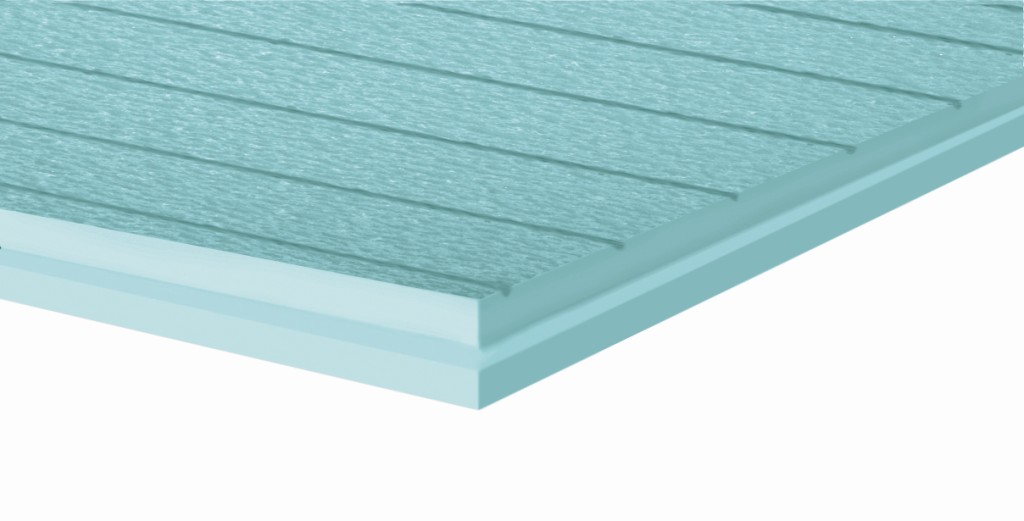

Fibran XPS ETICS BT

Areas of useage:
  • Pitched roofs, eaves, small pitched roofs
  • Facade profile
  • Hanging facades
  • Plastered facade ETICS
  • Blind thermal insulation formwork
  • Internal or sandwich wall insulation
  • Facades with stone facings
  • Sandwich panels
  • Thermal bridges (balconies, window and door jambs, concrete columns and tie-beams
  • Internal walls located next to colder spaces
Board thickness (mm) Package quantity (m2) Compressive strength (kPa) Board dimension (mm) Declared thermal conductivity (after 25 years) - W/mK
60 10,5 300 2500x600
stepenasti rub
hrapava površina s utorima
0,035
80 7,5 0,035
100 6 0,035
120 4,50 0,036
180 3 0,040
XPS - EN 13164 - T3 - CS(10\Y)300 - TR400 - DS(TH) - DLT(2)5 - WL(T)1,5

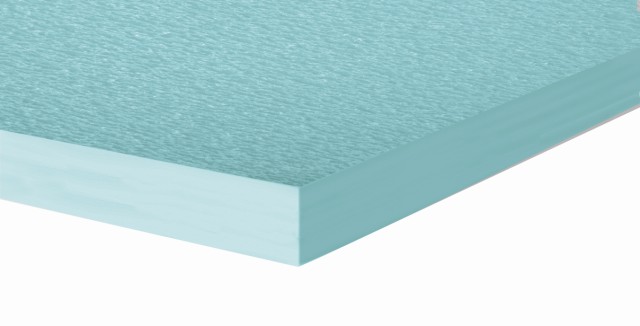

Fibran XPS FABRIC

Areas of useage:
  • Pitched roofs, eaves, small pitched roofs
  • Sandwich panels
  • Thermal bridges (balconies, window and door jambs, concrete columns and tie-beams
  • Internal walls located next to colder spaces
  • Thermal insulation in combination with gypsum boards and other materials
  • Panels, door and window frames, door leaves, containers, insulation facing elements, tailor-made products
Made by custom order:
  • Specified compressive strength CS(10/Y)300*[kPa]
  • Thermal conductivity from 0,033 do 0,040[W/mK]
straight edge, rough surface XPS-EN13164-T3-CS(10\Y)300*-DS(TH)-DLT(2)5-WL(T)1,5
Possibilities:
  • Thickness from 30 ro 180 mm
  • Length from 1000 ro 3100 mm
  • Board width from 600 ro 1200 mm
  • Cutting boards: thickness from 9 ro 40 mm
  • Boards with different grooves
  • * It is possible to order boards of compressive strength from 300-700 kPa

Fibran XPS INCLINE

Areas of useage:
  • Inverted warm flat roofs
  • DUO roofs (low energy and passive houses)
  • PLUS roofs (renovations, energy class upgrade)
  • Warm flat roofs
  • Green roof
  • Roof terraces
  • Parking lots
Hard thermal insulation boards in an inclinated form, which can substitute the inclinated breeze concrete on roof and external floor surfaces. By using them we gain the following:
  • Increase thermal efficiency
  • Decrease the weight (load)
  • Minimize the thickness of total construction (minimal basic thickness -1 cm)
Standard inclination: 1,67% i 2%
Special gradient and higher compressive strength* on request
Board’s dimensions: 1200x600 mm
Straight edge, jagged surface
XPS - EN 13164 - T3 - CS(10\Y)300* - DS(TH) - DLT(2)5 - WL(T)1,5 - WD(V)3

Fibran XPE - Protection against airborne sound

Recommended uses: In floor application, one layer of FIBRANxpe foil beneath or on top of thermal insulation can reduce the apparent level of impact noise by at least 18 dB

Thickness (mm) Width (mm) Length (mm)
3 1500 100
5
Top of the page
